NEC FMC Fill Limits Guide for NFPA 70 305.27 Conduit

When a facility team installs flexible metal conduit, wire types, or fire and power systems, they quickly run into NFPA 70 Section 305.27 and the idea of FMC fill limits. In our NEC FMC fill limits guide, we lay out the number and size rules so contractors do not guess, and facilities do not gamble. For commercial and industrial sites, one wrong assumption can trigger rework, delays, and paperwork that feels like it was printed on purpose to test patience. And yes, we have all seen teams treat conduit like a mystery box. We do not do that here.

Kord Electric supports commercial and industrial facilities, and we also work with major property buildings. Our technicians and expert service staff explain the rules in plain language, then help teams verify the right count, size, and installation approach so the electrical system stays safe and code compliant.

NFPA 70 305.27 in plain terms for commercial work

NFPA 70 Section 305.27 sets requirements for FMC fill so conductors move safely and remain serviceable. In practical terms, it limits how many wires a contractor can place inside the conduit. That matters because overfilling increases conductor stress, makes pulling harder, and can worsen heat buildup when circuits run.

From our experience at commercial and industrial facilities, teams often focus on “it fits” rather than “it behaves under load.” However, the code cares about behavior. Therefore, we guide project teams to follow the fill limits and use the conduit size based on the conductor count and conductor diameter. In addition, we help confirm proper installation practices, because a correct calculation loses value if the conduit gets installed with poor bends or rough handling during pull.

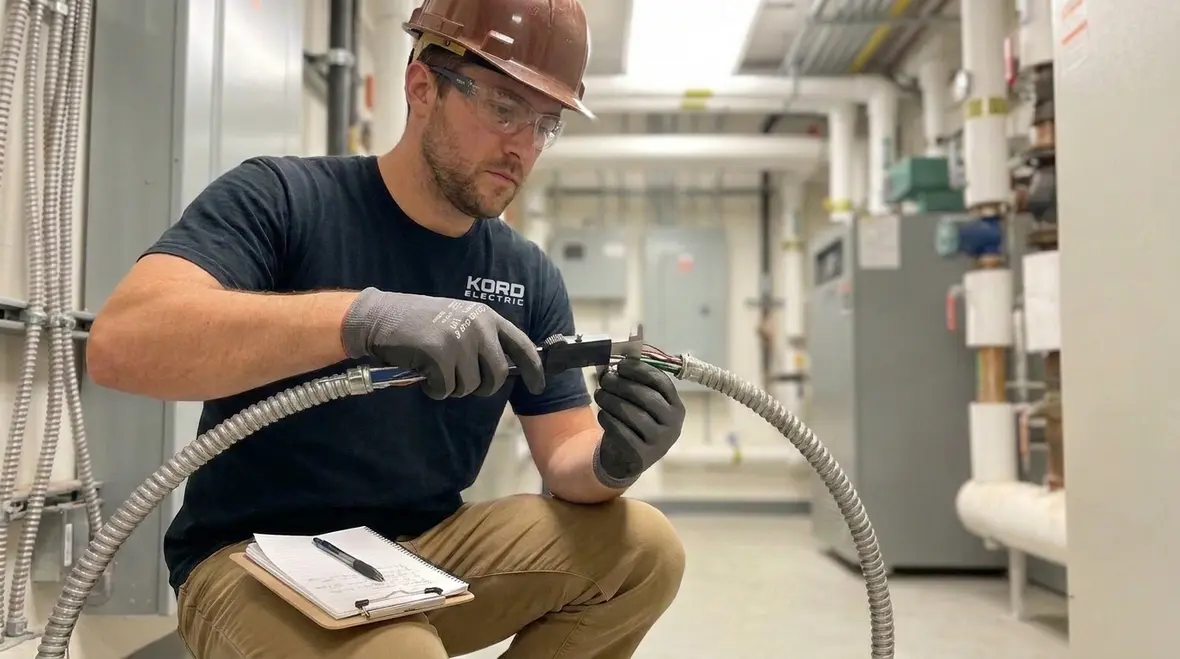

Technician reviewing NEC FMC flexible metal conduit fill limits for NFPA 70 305.27

If your team wants a bigger picture of how NFPA 70 ties into overall electrical safety, you can also review our resource on the National Electrical Code and how it frames safe design and inspections across commercial and industrial projects. That background makes the conduit rules feel less like isolated math and more like part of a connected safety system.

How the NEC FMC fill limits guide connects to wire sizes and counting

Using the NEC FMC fill limits guide, our technicians help clients connect three points that must agree: conduit size, conductor size, and the number of conductors in that conduit. First, we identify the conduit trade size being used. Next, we list each conductor and its size. Then, we apply the fill limit rules based on the conduit category.

At this stage, we usually see the same mistake again and again. Others estimate based on jacket appearance, even though conductor size rules do not care about how “thin” the insulation looks. Instead, we count conductors using the required measurement basis from NEC practice, then we check the permitted quantity for the specific conduit. After that, we document the numbers so inspection teams and internal stakeholders can review the plan with confidence.

To keep the work smooth, we also plan for future needs where permitted. Even though the code limits the current fill, proper design can reduce how often a project team later removes and replaces conduit because of late design changes. And yes, we sometimes tell the client team: changing conductor counts after rough-in is like changing the soundtrack after the movie started. It can be done, but nobody enjoys the delay.

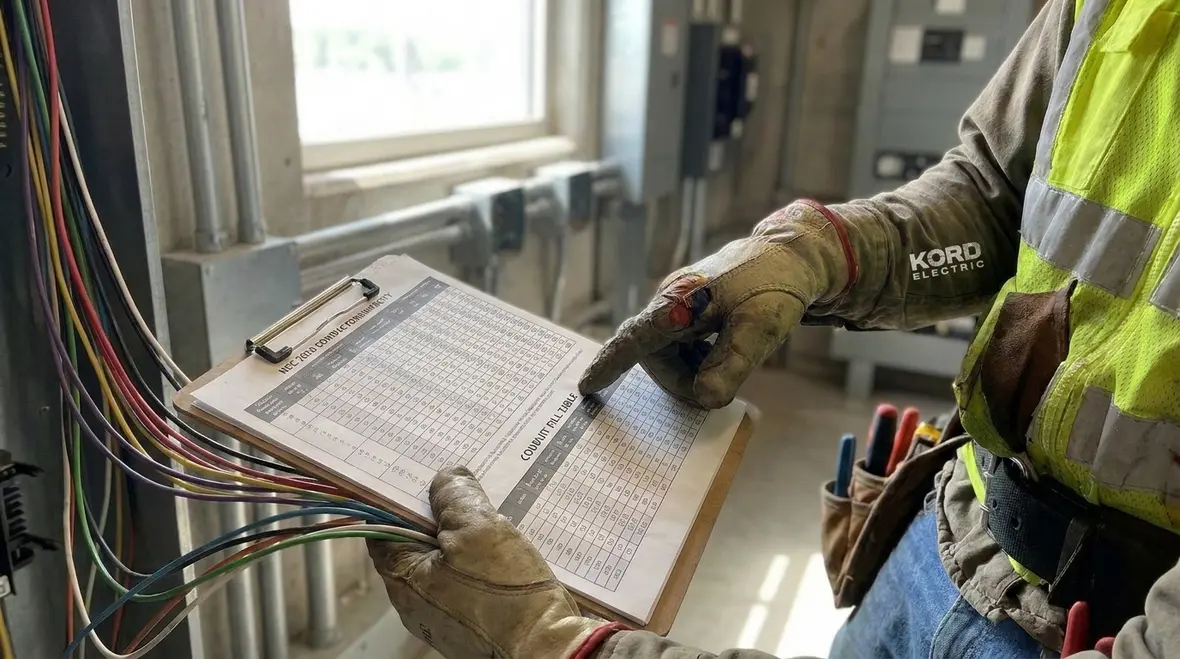

Diagram showing conduit trade size and conductor counting for NEC FMC fill limits guide

Number and size guide: what our technicians verify on site

Kord Electric treats the number and size guide as a field tool, not a paper exercise. Therefore, our expert service staff verifies details that drawings can miss, especially in multi-tenant buildings, industrial expansions, and complex retrofit work.

Here is what we typically check before pulling begins:

Conduit trade size matches what the design calls for, not what “seems close” in the storage room.
Conductor types align with the expected count and conductor size assumptions.
Bend quality supports the installation method, since tight turns can turn conductor pulling into a wrestling match.
Splice and termination needs do not conflict with how the conduit run is being used.
Labeling and routing supports service work without tearing apart finished areas.

Then, when a design team updates a panel schedule or a raceway plan, we re-check the fill math. This approach reduces the chance that a conduit run becomes “full” during final pull, when the project clock is already running and everyone starts speaking in short, stressed sentences.

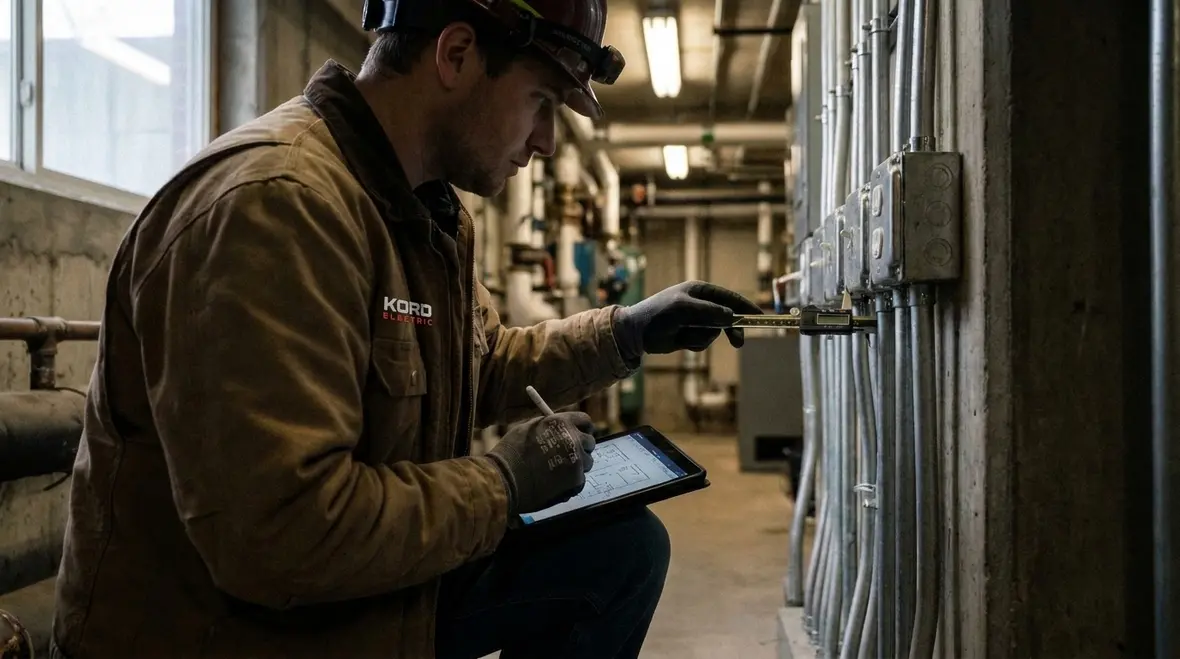

Field technician verifying NEC FMC conduit size, bends, and conductor list on site

Why conduit fill affects heat, pulling force, and safety

Conduit fill limits are not just about rules for rules’ sake. When a conduit holds too many conductors, it becomes harder to pull them through. As a result, installers may pull too hard, damage insulation, or use shortcuts that create long term failures. In addition, conductor arrangement within the conduit can affect thermal behavior.

Commercial and industrial facilities often run continuous loads, and electrical systems face more than office hours. Therefore, we treat fill limits as part of long term reliability. Overfilled conduits can also increase friction and cause abrasion during installation. That friction may not show up immediately, but it can reduce service life.

At Kord Electric, we explain it like this to our clients. Conductors in an oversized conduit have room to move and settle. Conductors in an overfilled conduit act like commuters in a crowded train. They might still arrive at their destination, but the ride is rough, and somebody ends up getting hurt. Then the facility pays for that mistake with downtime and rework.

Common compliance traps we see in major property buildings

In major property buildings and industrial spaces, the electrical design can involve many feeders, subfeeds, and specialty circuits. Because of that complexity, teams sometimes hit predictable traps. We see them again and again, and we help prevent them early.

Here are frequent issues:

Conductors added late without re-checking conduit fill calculations.
Mixed conduit sizes in one run when field conditions push teams to swap materials.
Incorrect conductor size assumptions based on visual estimation rather than NEC based sizing.
Unplanned splice locations that change how many conductors share a run.
Install shortcuts during pulling that increase wear on insulation.

To avoid those problems, our technicians coordinate with the broader job team so the conduit plan stays aligned with equipment schedules. If the design changes, we update the NEC FMC fill limits guide calculations and communicate the impact right away. This keeps the project moving forward instead of spiraling into a “find the error” scavenger hunt.

Major property building electrical room with NEC FMC conduit runs inspected for fill compliance

Coordination with inspections, documentation, and the NEC process

Inspections go smoother when teams can show their work. That is why we recommend documenting the conduit fill calculations and keeping them tied to the conduit schedule and panel schedule. When contractors can explain how the number and size guide was used, the conversation with the inspector becomes calm and direct.

Kord Fire resources also remind teams that NEC compliance involves more than one article. It connects to installation methods, system behavior, and safety goals. And in fact, at facilities, code requirements overlap across wiring methods and safety expectations. Therefore, we work to align the conduit fill plan with the rest of the electrical system design and fire related considerations where they apply.

In our process, our expert service staff does not just “check boxes.” Instead, they help clients understand what changed, why it matters, and how it supports safe operation. When a facility owner asks, “Will this hold up,” we provide a clear answer backed by calculation and installation best practice.

If you are planning a broader code review, it can also help to pair this NEC FMC fill limits guide with a deeper overview of NFPA 70 for the 2026 cycle. That way, your team can connect conduit decisions to grounding, overcurrent protection, and other requirements that show up during inspections and long term maintenance.

FMC fill limits FAQ for featured snippets

What does NFPA 70 Section 305.27 cover?

NFPA 70 Section 305.27 covers FMC fill limits, including how many conductors can fit based on conduit size and conductor size so that conductors can be installed, pulled, and operated safely over time.

How do we use the NEC FMC fill limits guide on a project?

We start by identifying the FMC trade size, then list each conductor and its size. Using the NEC FMC fill limits guide, we match conduit trade size to the conductor count and conductor size, verify the permitted fill amount for that category, and document the result so inspectors and internal reviewers can confirm compliance.

Why do FMC fill limits matter during installation?

FMC fill limits matter because they control pulling tension, friction, and heat. When limits are respected, installers can pull conductors without excessive force, insulation damage risk drops, and the completed circuit runs cooler and more reliably under load.

What should a commercial team check before pulling conductors into FMC?

Before pulling conductors into FMC, a commercial team should verify conduit trade size, bend quality, conductor list and sizing, splice and termination locations, and whether any late design changes increased conductor count beyond what the original fill calculation allowed.

Can late design changes break conduit fill compliance?

Yes. Adding conductors after rough-in without re-checking FMC fill calculations can push a conduit past its allowed fill, leading to failed inspections, rework, and possible long term reliability issues.

Who helps interpret FMC fill rules on a real commercial or industrial job?

On real jobs, Kord Electric technicians and expert service staff help interpret FMC fill rules, verify calculations, coordinate with inspectors, and keep the design aligned with NFPA 70 requirements and practical field conditions.
