NFPA 70 Section 314.24 focuses on box dimensions and sizing per NEC, and we treat it like a safety rule, not a suggestion. In our commercial and industrial work, we often start by matching the NEC box dimensions sizing to the equipment and conductors already planned. That means we do more than guess sizes, we verify allowable conductor fill, cover requirements, and spacing needs. Within the first steps of a typical project, our team may reference the NEC box fill style calculations and then confirm the box type, device trim, and wiring path will still look clean after the last cable is pulled. In short, we prevent the “why is this box bulging like it ate a power bar” moment before it starts.

What Section 314.24 really governs for boxes

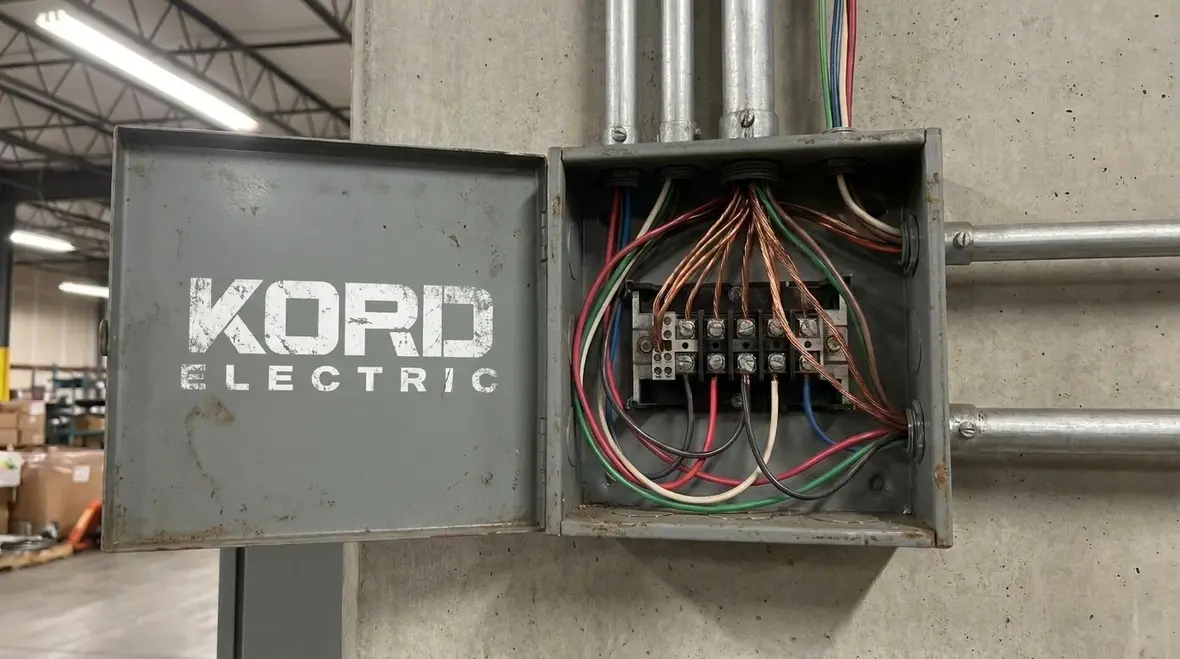

Electrician checking NEC box dimensions sizing in a commercial electrical room

Section 314.24 in NFPA 70 does not just talk about a box being “big enough.” Instead, it sets the sizing rules that help prevent overcrowding inside electrical enclosures. When wiring gets too tight, heat and insulation stress can rise. Also, technicians struggle to land conductors and terminate devices with the required care. Therefore, we insist on proper sizing per the NEC, especially on commercial and industrial facilities and major property buildings where changes, expansions, and multi-trade schedules are common.

Our expert service staff explains it plainly on site. They point out that a box is not only a container. It is where conductors, splices, grounding parts, and device yokes must live safely. And when we build the box plan right from the start, we reduce rework, failed inspections, and the kind of delays that make project managers age five years overnight.

Commercial NEC box layout showing conductor fill and device spacing

How conduit entries and conductor fill affect practical installation

Many teams learn about box fill on paper, then find out the wall plan does not match the reality of the job. However, NEC box dimensions sizing helps bridge that gap. For example, the number of conductors, the type of wiring, and the way cables enter the box can change how much internal space you truly have. If one party reroutes conduits late, the internal arrangement changes. Consequently, Section 314.24 becomes the guardrail that keeps the box from turning into a wiring maze.

In our service calls, we see the same pattern. Someone sized the enclosure based on an old drawing, then later added a control circuit or replaced single conductors with multi conductor cable. Even when the box looks fine from the outside, the internal space can fail the allowable fill rules. So we document what is installed, then we confirm the box type meets the NEC box fill expectations for the configuration.

And yes, we sometimes make jokes to keep people calm. We will tell facility teams that a box is not supposed to resemble a crowded subway car during rush hour. Then we follow that up with the boring part that keeps everyone safe and compliant: the calculations and the verification.

Technician reviewing conduit entries that affect NEC box dimensions sizing

We size boxes early so technicians can actually work

Proper box sizing is not only about passing inspection. It also supports better workmanship. When our technicians receive enclosures with correct NEC box dimensions sizing, they can route wires, land terminals, and fold conductors without damaging insulation. Also, they can maintain required bends, support devices correctly, and close the cover without forcing it.

As the project moves forward, we also coordinate with electrical subcontractors and other trades. For commercial and industrial facilities, this matters because walls and ceilings evolve. Fire stopping schedules, access panels, and cable tray layouts all influence how boxes end up. Therefore, our crew checks the planned box location against the actual routing path.

Our approach stays consistent: we confirm the device count, conductor types, and whether there will be splices in the box. Then we select a box size that keeps the wiring within the allowable fill. That means we reduce the need to “make it fit” later, which is the electrical equivalent of duct taping a smile onto a broken plan.

Field crew coordinating NEC box sizing with commercial wall layouts

Guidance for commercial and industrial facilities

Large buildings carry unique risks. More systems share space. More circuits enter at different phases of a build. And more modifications happen after occupancy. So we treat Section 314.24 as a baseline that supports long term reliability, not just a one time compliance check.

For example, major property buildings often add security, building automation, access control, lighting control, or additional receptacle circuits as tenants change. When those updates happen, the existing boxes may already contain conductors beyond the originally calculated capacity. So we review current conditions and we plan for future maintenance access.

Our expert service staff also explains a key point to owners and site managers. If a box fails sizing rules, it can limit inspection outcomes and can lead to unsafe installation practices such as excessive compression, forced device placement, or improper cover closure. Those outcomes can create heat stress and reduce device life. So we keep the enclosure plan tight from day one and we document it so future updates remain predictable.

For teams that want a broader NEC foundation, we often point to resources like our National Electrical Code overviews for commercial facilities, including guides such as “Understanding NFPA 70: The National Electrical Code Explained for 2026,” which pair well with detailed topics like NEC work space dimensions and NEC specific purpose load calculations. That way, box sizing decisions connect smoothly with big picture code strategy across the building.

Dual column checklist for sizing and verification

During design and rough in

We confirm the planned devices and circuits that will land inside each enclosure.
We review conductor types and the number of conductors entering and leaving the box.
We check NEC box dimensions sizing for the enclosure type and configuration.
We consider splices, grounding parts, and the space needed for device terminals.
We align box placement with conduit routing and access needs.

During commissioning and troubleshooting

We verify what is actually installed and compare it to the wiring plan.
We confirm cover fit and that conductors can be arranged without damaging insulation.
We check that terminations remain within equipment requirements.
We document findings so future upgrades do not break the box capacity plan.
We support rework quickly when a box needs to be resized.

Common mistakes we see and how we correct them

Even strong teams make mistakes when schedules compress. However, the fixes usually stay straightforward once the root cause is clear. First, teams sometimes ignore the box depth and focus only on the box face size. Then, they discover that the conductors and device yokes do not fit once covers and bends get factored in. Second, people may swap cable types or add a circuit after the original count, and the enclosure fill can exceed what the box supports under the NEC sizing rules.

Also, technicians sometimes inherit older enclosures that were built for a different device lineup. When the facility upgrades controls or outlets, the internal conductor volume changes. Therefore, we assess each box on its current condition, not on what the original drawing promised.

Our expert service staff also helps teams avoid the “we will just force the cover” mindset. When a cover does not close easily, that is a signal. We stop and correct sizing or conductor routing before the job proceeds. After all, a box that struggles is not a minor inconvenience. It can signal a violation of safe wiring practices and it can create a problem during inspection.

When box sizing connects with broader planning, buildings see fewer surprises. That is why many of our commercial clients review related topics such as work space dimensions, specific purpose load calculations, and data driven electrical design. Together, those code details and design practices turn “it should fit” into “we know it fits,” which is a much better sentence to hear on a busy jobsite.

For properties across Los Angeles County and Southern California, those same practices tie directly into broader support options like our Los Angeles County electrical services for commercial and industrial buildings, so box sizing decisions stay aligned with panel work, distribution changes, and long term maintenance.

FAQ: NEC box dimensions sizing and Section 314.24

What does NFPA 70 Section 314.24 require for boxes?

It requires correct box dimensions and sizing per the NEC rules so the enclosure can safely hold the conductors, devices, and splices without exceeding allowable fill. In other words, the box must provide enough volume and workable space for the specific conductors, splices, and hardware that live inside it, instead of being treated as a generic “close enough” container.

Why does box fill matter on commercial projects?

Box fill matters because overcrowding can stress insulation, make terminations harder, and increase the chance of inspection failures or unsafe installations. In busy commercial and industrial facilities, that overcrowding also makes future changes and troubleshooting slower and more expensive, since every adjustment feels like solving a puzzle in a space that is already overpacked.

How do we confirm NEC box dimensions sizing for a specific box?

We verify device count, conductor types and quantities, splice and grounding parts, then we match the enclosure type and size to allowable fill rules. That process usually includes reviewing the wiring method, checking how many cables and conduits enter the box, and confirming that depth, not just face dimensions, supports safe bending and terminations.

What happens if a box is too small?

If a box is too small, wires may not route safely, covers may not close correctly, terminations can be damaged, and inspections can fail. In the field, that usually shows up as tight folds, pinched insulation, and devices that never seem to sit right. When we see that, we recommend resizing, rework, and in some cases revising conduit entries so the new box actually meets NEC box dimensions sizing, not just the minimum that will fit the opening.

Do box sizing rules apply during upgrades after occupancy?

Yes. Box sizing rules apply any time conductors, devices, or circuits change. When a tenant improvement adds controls, lighting, or new receptacles, we reassess the existing box capacity based on the new configuration and adjust as needed, instead of assuming the original enclosure can handle whatever gets added later.

Can our technicians handle resizing on-site?

Yes. Our technicians evaluate conditions on-site, then correct enclosure size and wiring layout so the install aligns with NEC requirements for the current configuration. That may include installing a deeper or larger box, adjusting conduit entries, and rebuilding terminations so the finished work looks clean, passes inspection, and gives future crews enough room to work.
