NEC Transformer Switch Working Space and 110.55 Compliance

At Kord Electric, we walk job sites like we mean it, and we pay close attention to something many people overlook until it becomes a problem: the NEC transformer switch working space. In NFPA 70 Section 110.55, the code focuses on the clear space around electrical gear so workers can safely stand, move, and work on transformers and switchgear without fighting equipment, walls, or layout errors. In other words, it helps prevent “surprise hazards” that show up when a crew needs access for inspection, maintenance, or emergency response. And yes, we have seen conditions where the space was so tight that even a determined person could not “squeeze in,” which is a fun way to say the work becomes unsafe.

Third party standards matter, but the real story comes from what our team sees. Our technicians and expert service staff explain the rules in plain language, then help customers build compliant, serviceable designs for commercial and industrial facilities and major property buildings.

Why NFPA 70 Section 110.55 exists for real jobs

NFPA 70 Section 110.55 exists because electrical gear does not forgive mistakes. When a transformer or switch is energized, the surrounding area becomes part of the safety system. Therefore, the code sets requirements for working space so qualified personnel can perform tasks with proper access and safe approach distances. Instead of guessing, the standard uses specific clearance rules based on voltage, conductor exposure, and the height and width of the space needed.

Technician verifying NEC transformer switch working space clearance

Even when contractors intend well, layout issues can sneak in. For example, someone may place storage racks, waste containers, or crowd the control room aisle. However, when the time comes to remove covers, inspect connections, or troubleshoot a fault, that “harmless” obstruction suddenly turns into a serious barrier. So we treat 110.55 as a planning requirement, not a last minute cleanup activity.

How Kord Electric checks transformer switch working space

We start by understanding the exact equipment and the setting. Next, our technicians verify the location of the transformer and the switch, then measure and document the clearances required by the applicable conditions in 110.55. After that, we compare what the drawing says to what the field actually looks like.

Our process stays practical. We focus on what the crew will do during normal and emergency work. For instance, a maintenance technician might need to open a door, stand close to a panel, or reach a switching device without contorting their body around sharp edges. Because of that, we look beyond “code math” and check if personnel can safely operate the gear and use the space for tasks.

Also, we explain the reasoning in plain terms during our walk-throughs. Our expert service staff tells people, “If a person cannot comfortably work, the design does not support safe service.” And if that sounds obvious, well, you would be amazed how often it is not followed.

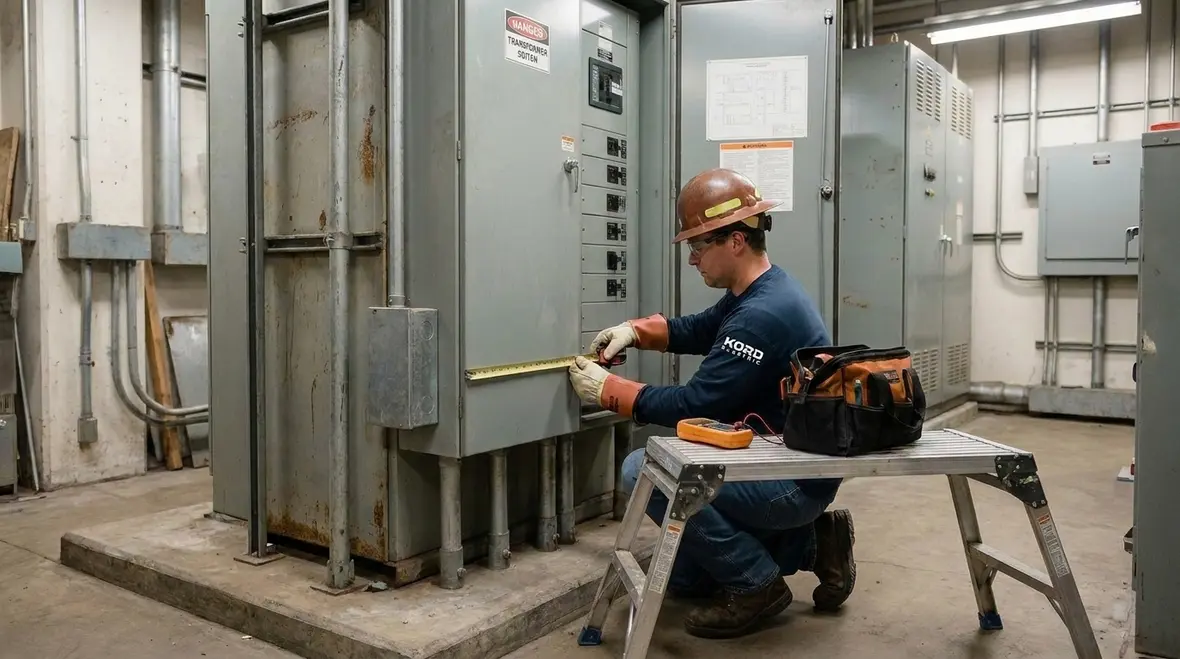

Kord Electric team reviewing NEC 110.55 working space around transformer

When customers want deeper context for how this fits into the broader National Electrical Code, we often point them to our resource Understanding NFPA 70: The National Electrical Code Explained for 2026, which connects high level NEC direction to real site work. That way, decisions about transformer and switch working space stay aligned with the larger code story, not just a single section number on a plan.

Key clearance factors that drive 110.55 results

Section 110.55 does not use one single clearance number for every situation. Instead, it uses key factors that change the required space. As a result, two rooms that look similar can have different clearance needs depending on voltage level and the nature of the equipment.

Voltage and exposed parts: Higher voltage and exposed energized parts increase the approach and working space requirements.
Depth from the equipment: The distance from the face of equipment and live parts matters, and it affects how workers can stand and move.
Width of the working space: Teams need enough room to position tools and bodies safely, not just to glance at labels.
Height considerations: The working space must support safe access for the tasks, not create a “reach only” situation.
Location and door swing: Doors and access paths can remove usable space if they open in the wrong way or if the area becomes blocked when opened.

Therefore, we do not treat 110.55 as a single checklist item. We treat it as a system tied to equipment safety and work practices. When customers want compliance, we help them build a layout that stays safe during installation and remains safe years later.

Diagram of NEC transformer switch working space depth, width, and height clearances

Common layout mistakes that quietly violate working space

Most clearance problems do not start as malicious choices. Usually, they come from everyday decisions made during construction, tenant work, or renovations. However, even small changes can reduce the clear area that 110.55 expects.

Added equipment and storage: People bring in carts, boxes, ladders, and parts bins. Then they forget these items become permanent obstructions.
Improper cable routing in the service area: Cable tray and conduit layouts can crowd the working space if designers do not coordinate with the clearance plan.
Doors that do not open as intended: A door can swing into the needed area, cutting usable working space when a technician arrives with tools.
Furniture and “temporary” barriers: Temporary walls, signs, or barriers often become permanent and eat the clearance.
Misplaced access pathways: A hallway leading to the transformer area might feel wide enough until you add the real movement needs of a worker.

Now, here is the part that makes everyone sigh: many of these issues get noticed only when a service call happens. Yet by then, the fix can require shutdowns, rework, and downtime costs. So we encourage customers to address clearance needs early, before the site turns into a storage unit with electrical gear.

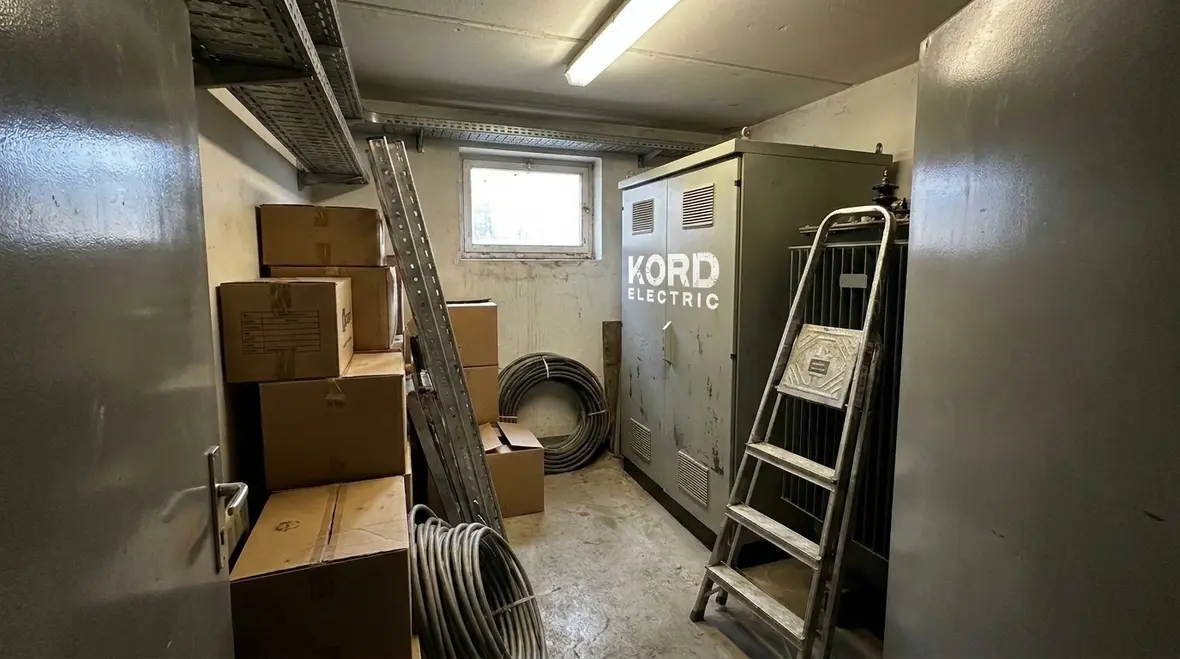

Crowded electrical room showing poor NEC transformer switch working space planning

Planning for maintenance, inspection, and emergency access

Commercial and industrial facilities run on uptime. Consequently, the goal of 110.55 goes beyond “paper compliance.” It supports safe maintenance cycles and predictable access during inspections and emergency response.

We ask our customers a simple set of planning questions during design reviews and retrofits. Who performs routine work? How do technicians remove covers? Where do they stage tools? What happens when the equipment is down and the crew needs to work faster than expected?

Our technicians and expert service staff then translate that into real site actions. We recommend clear pathways that stay open, we highlight door swing issues, and we help ensure the space stays usable even after normal material deliveries. If a facility has multiple buildings or major property structures, we also coordinate so each gear area gets the correct treatment, rather than “one clearance plan to rule them all.” That approach fails in the real world, like trying to use a butter knife as a crowbar. It can work, but it is not the plan.

Because working space interacts with many other NEC sections, we often pair 110.55 reviews with topics like general requirements scope and application. Resources such as our guides on NEC 110.1 general requirements scope for electrical safety and the 2026 NEC application requirements guide and NFPA 70 scope help facility leaders see how transformer and switch clearances fit into the wider NEC framework they are already navigating for upgrades and inspections.

Document, measure, and keep compliance consistent over time

After construction, clearance can change faster than people expect. A site adds racks, updates signage, moves equipment, or runs upgrades. Therefore, we recommend that facilities treat working space compliance as an ongoing process.

We help customers establish a simple practice. First, they measure the working space as-built. Next, they document the results so future changes have a reference point. Then, during service and inspection visits, our team looks for new obstructions and verifies that the area remains usable. This approach reduces the chance of non compliant conditions after tenant improvements or facility expansions.

And since our customers operate major property buildings and industrial setups, we also emphasize coordination across trades. When electrical, mechanical, and construction teams communicate early, fewer clearance surprises show up later. In the end, good documentation protects the facility and supports safer work.

For facilities planning broader code driven upgrades beyond NEC transformer switch working space usage, Kord Electric can connect these reviews with services such as electrical code upgrade consulting for renovations, electrical safety training requirements for facilities, and larger distribution assessments. Our Los Angeles County electrical services overview shows how these NEC focused checks fit into full project support, from design and documentation through inspection and long term maintenance.

FAQ: NEC transformer switch working space

What does NFPA 70 Section 110.55 require for transformer and switch working space?

NFPA 70 Section 110.55 requires adequate working space around transformer and switch equipment so qualified workers can safely approach, stand, and service the equipment. That means clear depth, width, and height around energized parts, along with unobstructed access paths, so personnel are not forced into unsafe body positions or blocked by doors, storage, or added equipment during normal operation, maintenance, or emergency work.

Does required NEC transformer switch working space depend on voltage?

Yes. NEC transformer switch working space depends on factors such as voltage level, whether energized parts are exposed, and the installation conditions defined in the code tables. Higher voltages and exposed live parts typically increase both the depth and the approach distance required, so two rooms that look similar can have different clearance requirements based on the equipment and voltage present.

Can storage, carts, or other equipment be placed near transformers and switches?

Only if those items stay outside the required working space. When storage racks, carts, boxes, ladders, or added panels creep into the NEC transformer switch working space, they effectively reduce the usable clearance and can cause the installation to fail the intent of NFPA 70 Section 110.55. The safest approach is to treat the working space like a permanent “do not block” zone, documented in drawings and enforced in day to day operations.

Do door swings and access paths matter for 110.55 compliance?

Yes. Doors, access panels, and even gate swings can reduce usable working space when they open into the clearance area. Under NFPA 70 Section 110.55, safe working space includes the condition of the area while doors or covers are in their operating positions. If opening a door blocks the approach, forces people sideways, or makes it impossible to stand in front of the equipment, the layout needs to be corrected.

Is NEC transformer switch working space only a design concern during construction?

No. Working space is a lifecycle requirement. Even if a project is built correctly, later changes such as tenant fit outs, equipment moves, new racks, or added cabling can encroach on the clearance. Facilities should periodically verify working space, especially after renovations or load changes, to ensure ongoing compliance with NFPA 70 Section 110.55 and to protect technicians who rely on that space during real service calls.

Final word: make compliance part of your service plan

Working space rules protect your people, your equipment, and your downtime budget. When we help a facility review NFPA 70 Section 110.55, our technicians and expert service staff measure, explain, and recommend fixes that keep transformer and switch access safe and practical. If your commercial or industrial site serves customers, runs production, or manages major property buildings, do not wait for a service call to discover clearance issues. Contact Kord Electric today and let us help you confirm compliance before the next shutdown becomes a surprise.
